T48 TL866II 3rd Generation Programmer Support EPPROM MCU SPI NOR NAND Flash EMMC

€58.00
Tax excluded
Quantity
In stock

T48 (TL866II 3rd Generation) Programmer Support 31000+ ICS for EPROM / MCU / SPI / Nor / NAND Flash / EMMC.

  • Programming speed much faster: (30MHZ); for SPI NOR FLASH 25Q128, 30s+5.4s(P+V) (30MHZ); for P_NAND 29F1G08AB, 27s+17s(P+V); for P_NOR FLASH EN29LV320 TSOP48, 24s+1.9s(P+V)......
  • Support EMMC/EMCP; P-NAND; SPI NAND FLASH; GAL PLD; MCU: 51/PIC/AVR; 27/28/29/39/49/50; 24/25/45/93/95; 74 Series Logic IC Visual Test
  • Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code-runs much faster, support multilanguage menu (English, Chinese, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian), it can automatically identify the operating system to install and run under Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11.

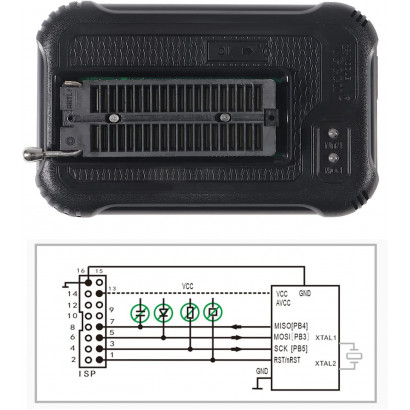

  • T48 hardware Parameters: 32-bit MCU with 120MHZ, 4-layer PCB Design, USB2.0 HS 480MHZ; Volume: 10X6.5X2.8 cm (almost the same as TL866II); 16 channel ISP, total 56-channel dedicated IO, 56-channel high-speed high-voltage isolation; VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable; Power consumption: 5V <500MA.

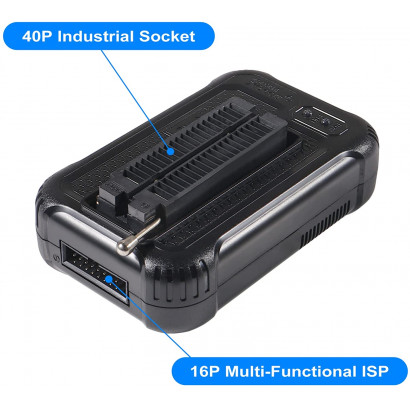

  • With 40-pin industrial high-quality ZIF Socket (Pluggable/replaceable), newest model T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer. Based on 32-bit MCU with 120MHZ and 4-layer PCB design, this professional T48 programmer support high-capacity NAND EMMC up to 256GB and programming speed is much higher. Suppport high-voltage chips, such as 27Cxxx series, VCC Maximum up to 25V, that is what TL866II cannot achieve.
HK000039
3 Items

No customer reviews for the moment.

Write your review

T48 TL866II 3rd Generation Programmer Support EPPROM MCU SPI NOR NAND Flash EMMC

T48 (TL866II 3rd Generation)

»» Download T48 (TL866II 3rd generation) software «
